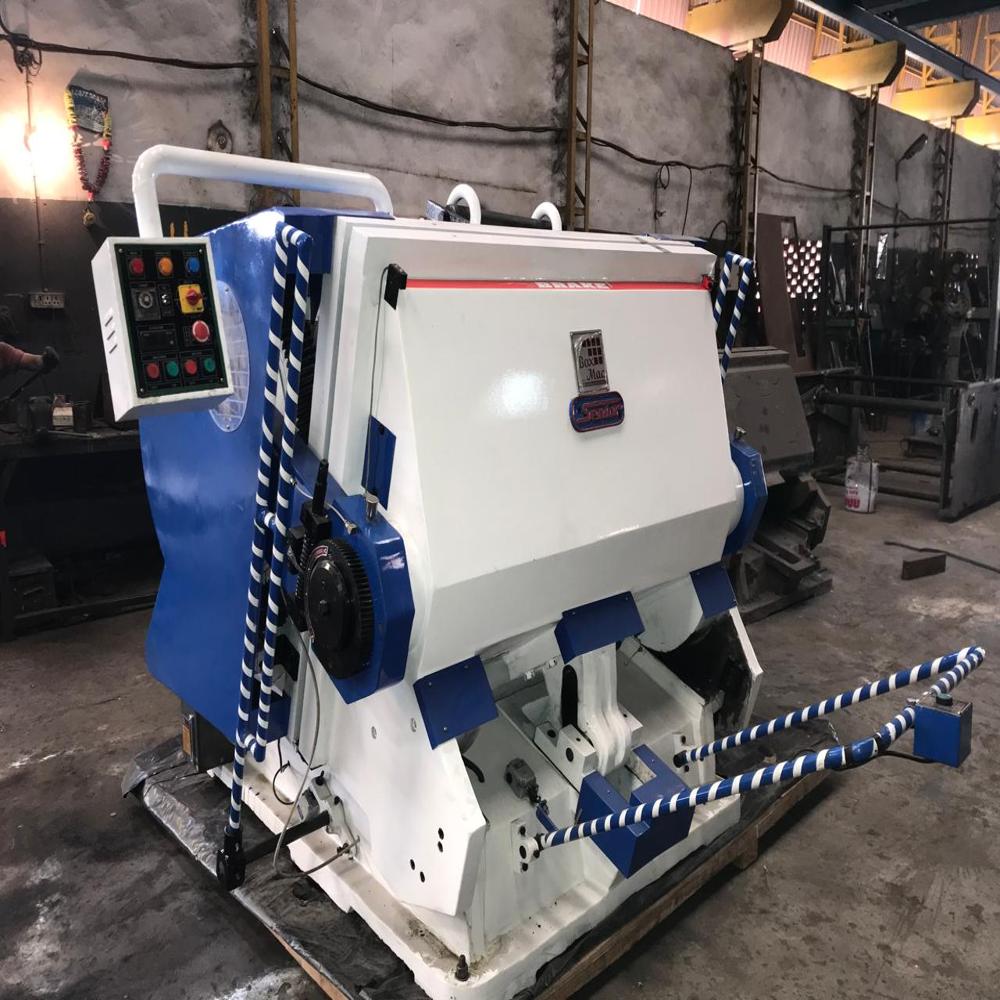

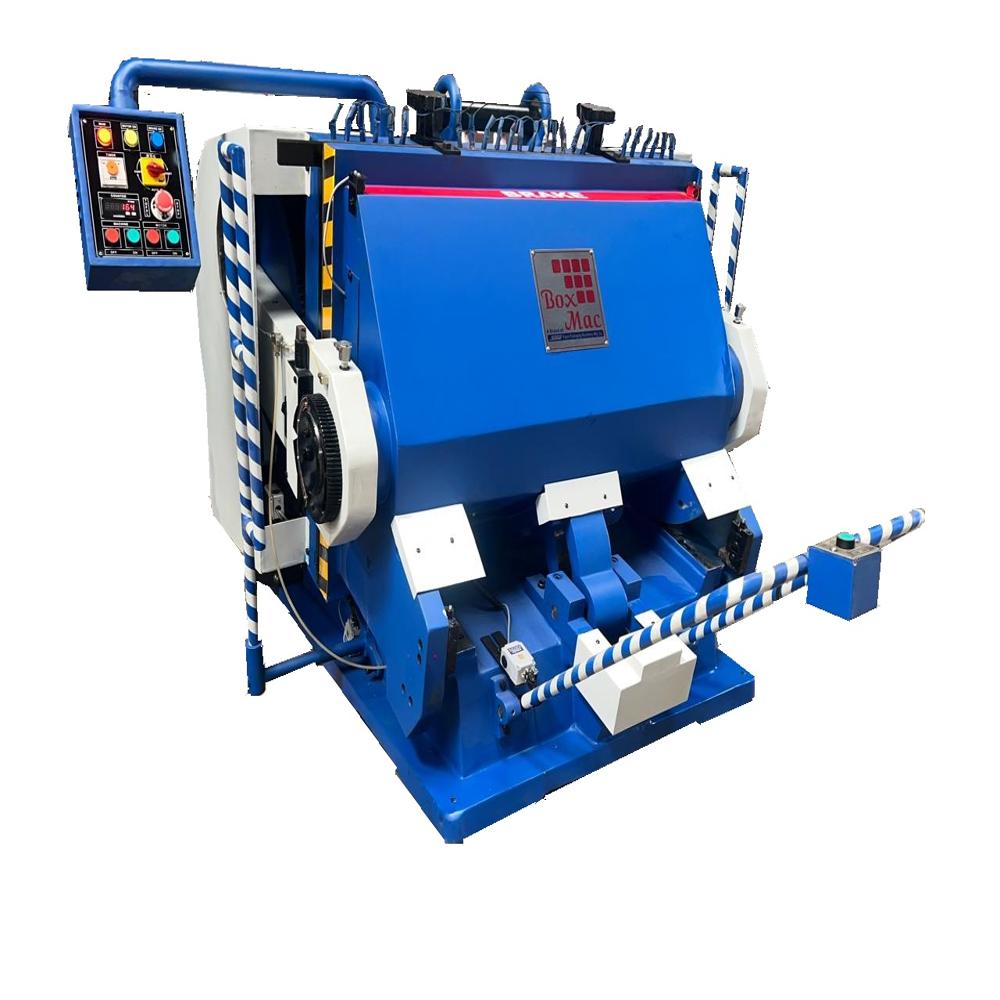

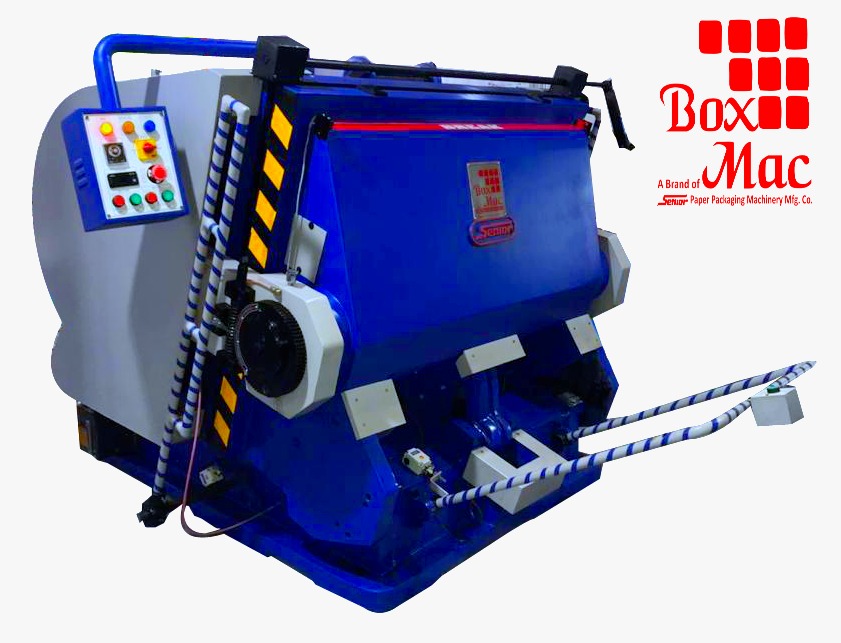

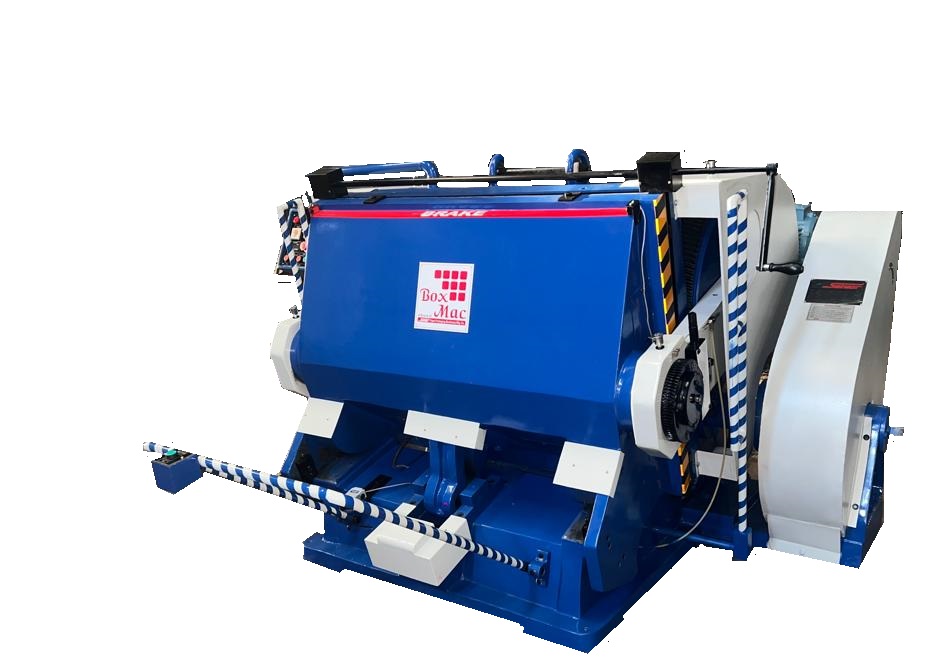

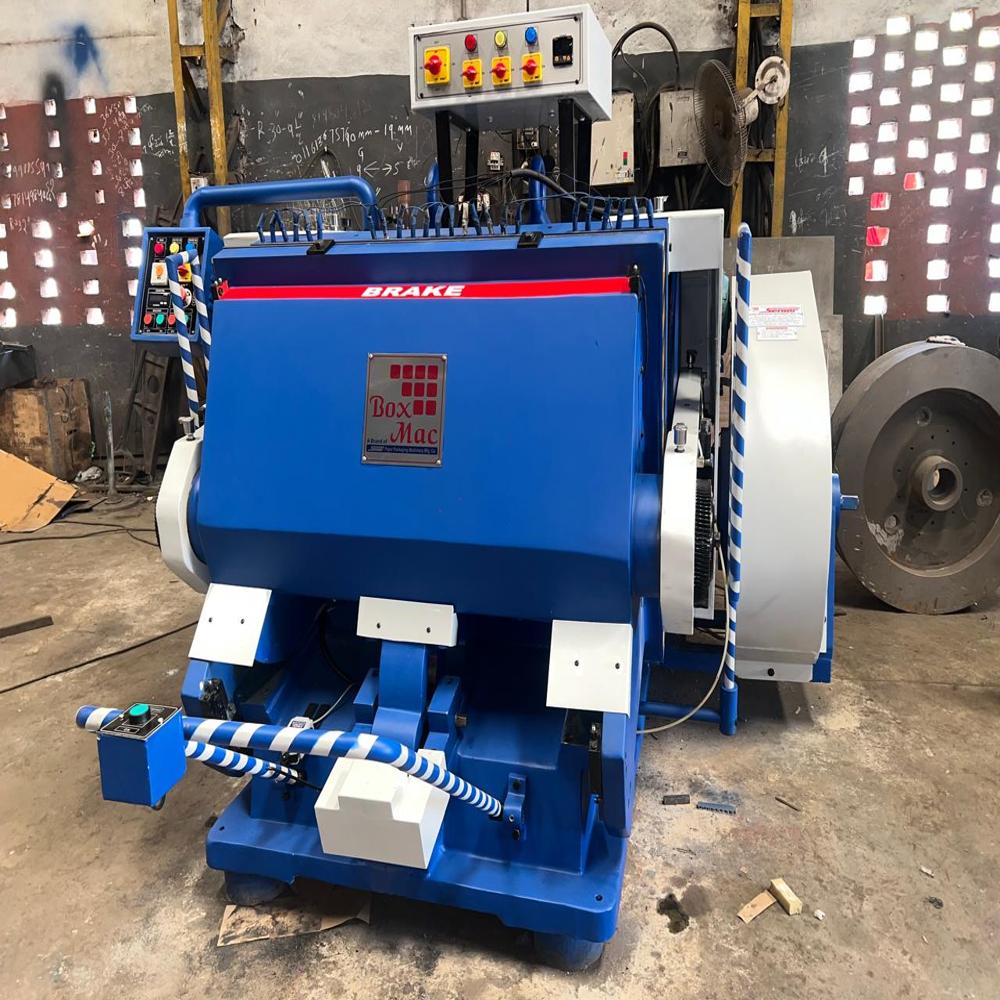

Heavy duty Die Cutting and Creasing machine

SALIENT FEATURES

Extra Heavy Duty Machine

Bed open at 85 Degree, Easy to operate gives extra time operator for feeding, Main safety Feature in our machine

Machine Equipped with Heavy shafts of Alloy Steel Material

Main Shaft Dia 135mm

All Side Gears and Double Helical gears hardened Steel

Fine Impression Adjustment in Microns through Eccentric Steel Worm Gears.

All Pins are well Grounded, All buses are of Bronze Phosphorous Metal.

Adjustable Chases To Easily Affix Dies , Can Interchange Die in 2 Minutes

Motor 3 H.P

S.S. Plate Reversible

Bearing SKF/NBC/NTN

Control Panel and Motor are of Siemens

Electro Magnetic Clutch & Brake to eliminate possibility of time lag between driving & breaking

Dual Timing Device to give a variable period from half to ten seconds

Two Safety Devices to stop the moving block immediately and isolate the starting mechanism With Skin Sensor
